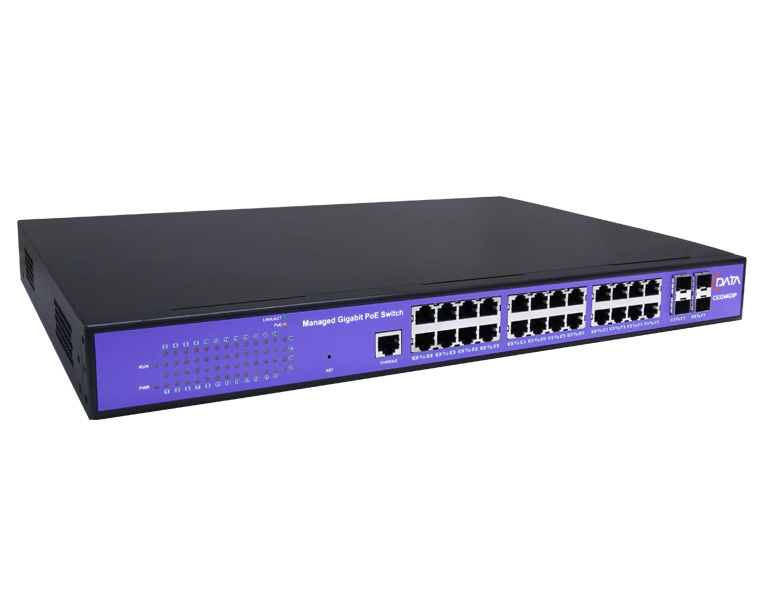

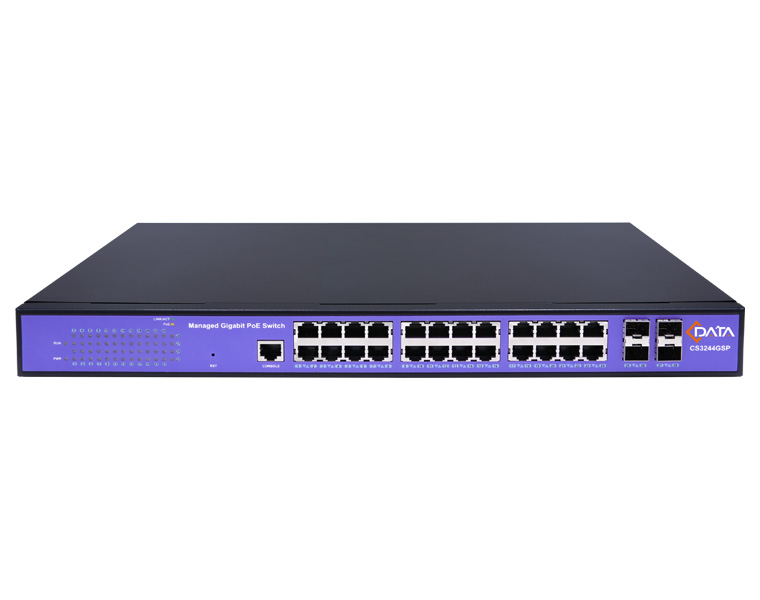

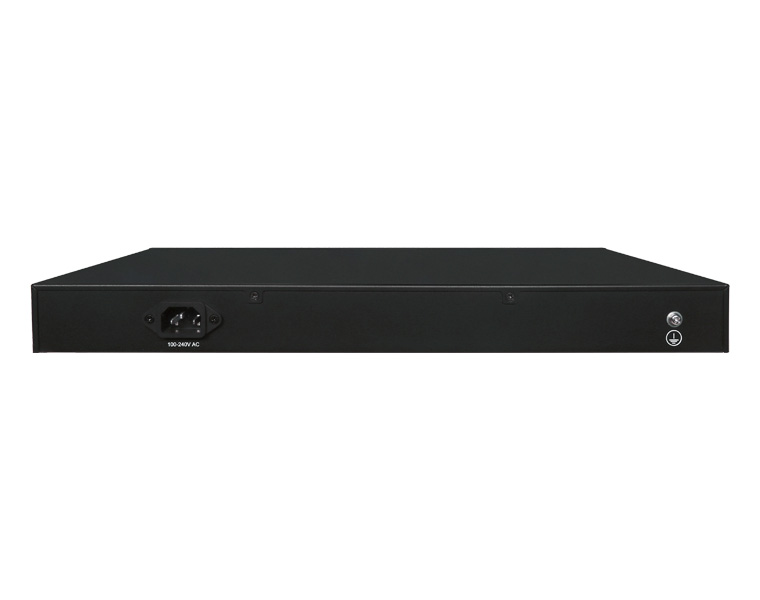

| Models | CS3244GSP |
| Physical Interface | 24*10/100/1000M BASE-T 4*GE SFP |
| Management port | 1* RJ45 Console Port |
| Fixed power supply | one |
| Max PoE Power Consumption | 390W |
| POE standard | IEEE 802.af/at |
| Fixed fan | one |
| Dimension (W×D×H)mm | 440*263.7*44 |
| Led light | Each port has 1 Link/Ack indicator Each port has 1 PoE indicator Each device has 1 Power indicator Each device has 1 System indicator |
| Working Voltage | AC 100-240V/50-60Hz |
| Working temperature | 0 - to 50℃ |
| Storage temperature | -40 - 70℃ |
| Ambient humidity | 10% ~90%RH,non-condensing |
| Storage humidity | 5% ~90%RH,non-condensing |
| Anti-Lightning | Port:6KV,Power:4KV |
| Anti-Static | 8KV |
| Performance parameter | |
| Models | CS3244GSP |
| Buffer | 4.1MBit |
| Switch capacity | 56Gbps |
| MAC Address Entry | 8k |
| Throughput(Mpps) | 41.6 |
| Jumbo Frame | 10k |
| VLAN Entry | 4k |
| QinQ | Yes |
| LACP Group | 8 |
| LACP Member in Group | 8 |
| MSTP Instance | 8 |
| L2 Multicast Entry | 512 |
| Queue/port | 8 |
Software specification | ||
| Port | Basic Port Configuration | Auto MDI/MDIX, Port Speed, Port Duplex, Port MTU(Jumbo Frame), Portisolation |
| MAC Address Management | MAC Address Aging Time, MAC Address Learning ON|OFF, MAC Address Learning Limitation, Static MAC Address, MAC Address Filter | |
| Storm Control | Storm-control for BUM, Shutdown-control for BUM | |
| VLAN | VLAN Management | VLAN, VLAN PVID, VLAN Trunk, VLAN Hybrid, Basic QinQ, Selective QinQ, 802.1ad, VLAN Mapping,VLAN Interface |
| Ring Protection | Spanning Tree Protocols | STP/RSTP/MSTP, BPDU Guard, BPDU Filter, Flap Guard, Loop Guard |
| Link Aggregation | LACP Configuration | LACP Link Aggregation, LACP Port Priority, LACP Load Balance |
| Error Handling | Error-disable Configuration | Error-disable Based on BPDU-guard | Loopback-detect | Port Security, Errordisable Recovery |
| Fault Detection | Fault Detection Features | Loop-back Detection |
| IP Services | IP Protocol | ARP, DNS Client, SNTP Client, ICMP, IPv6, IPv6 ND/SLAAC |
| DHCP Service | DHCP Client, DHCP Snooping, DHCP Snooping Option82 | |
| Multicast Protocols | L2 Multicast Protocols | IGMPv1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, IGMP Filter, Static Group |
| QoS | Flow Classification | 802.1P Priority, DSCP Priority |
| Rate Limit | Rate Limit, Port-based Bandwidth | |
| Scheduling Algorithm | SP, WRR,SP+WRR | |
| Security | Port Security | Rule Based On IP/MAC/MAX,Violation(Protect/Restrict/Shutdown), Recovery |
| Access Control List | Standard IP ACL, Extended IP ACL, Standard MAC ACL, Extended MAC ACL, Standard Hybrid ACL, Extended Hybrid ACL, Standard IPv6 ACL, Extended IPv6 ACL | |
| AAA | Radius, TACACS+ | |
| Configuration And Maintenance | Monitoring and Diagnostics | 1:1 SPAN, Ping, Tracert, DDM |
| Device Management | SNMP v1/v2/v3, SNMP Trap, RMON, SYSLOG , LLDP, WEB(HTTP), Console, Telnet, SSH, Cloud, System Upgrade (WEB), Configuration Management (Backup/Restore), Factory Reset, Password Reset | |
Product Model | Specification | Power Supply |
CS3084GS | 8*GE (RJ45) + 2*GE (SFP) + 2*GE/2.5GE (SFP) | 100~240V AC |
CS3164GS | 16*GE (RJ45) + 4*GE (SFP) | |
CS3244GS | 24*GE (RJ45) + 4*GE (SFP) | |
CS3242GX | 24*GE (RJ45) + 2*10GE (SFP+) | |
CS3084GSP | 8*GE (RJ45 PoE) + 2*GE (SFP) + 2*GE/2.5GE (SFP), 140W PoE | |
CS3164GSP | 16*GE (RJ45 PoE) + 4*GE (SFP), 300W PoE | |
CS3244GSP | 24*GE (RJ45 PoE) + 4*GE (SFP), 390W PoE | |
CS3242GXP | 24*GE (RJ45 PoE) + 2*10GE (SFP+), 390W PoE |
