Overview Specs Ordering Information
MUX/DEMUX - 翻译中... NMU - 翻译中... COTU200G-M1H2-DCO-C - 翻译中... DOTU10G-M4H4 - 翻译中... DOTU25G-M4H4 - 翻译中... MOTU40G-M4H1-C - 翻译中... MOTU100G-M4H1-C - 翻译中... COLP-C - 翻译中... OCP10G-C - 翻译中... BA20G22-C - 翻译中... LA20G22-C - 翻译中... PA20G32 - 翻译中... DCM - 翻译中...

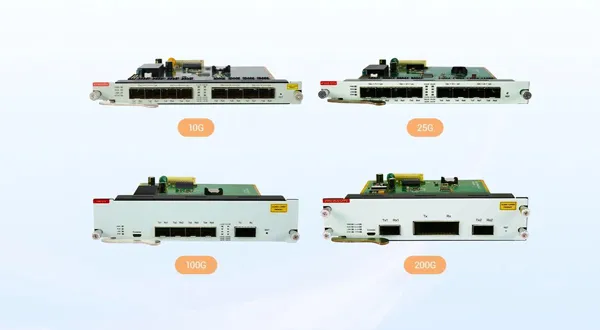

10G/25G/100G/200G Equipment, Adapt to Different Bandwidth - 翻译中...

10G/25G/100G/200G Equipment, Adapt to Different Bandwidth - 翻译中...

翻译中...
Support Multiple Services, Saving Fiber Resources - 翻译中...

Support Multiple Services, Saving Fiber Resources - 翻译中...

翻译中...
Compact Design, Flexible Networking - 翻译中...

Compact Design, Flexible Networking - 翻译中...

翻译中...

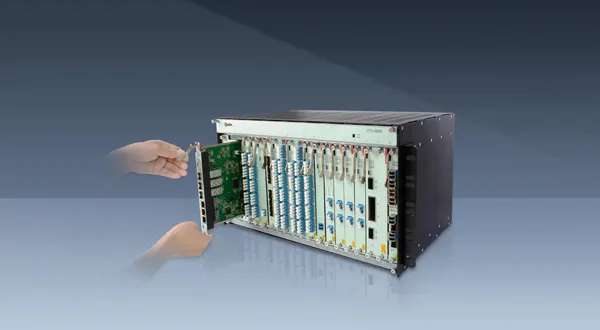

Hot Pluggable, 24 Hours Online - 翻译中...

Hot Pluggable, 24 Hours Online - 翻译中...

翻译中...
Remote Management, Easy Maintenance - 翻译中...

Remote Management, Easy Maintenance - 翻译中...

翻译中...

Application Scenarios - 翻译中...

翻译中...
  • otn wdm chassis for carrier operators
  • otn wdm chassis for mso isp
  • otn wdm chassis for idc
  • otn wdm chassis for special network

Technical Overview

  • demux 1
  • demux 1
翻译中...
Datasheet Get Docs

Technical Specifications

ItemsDescription
Wavelength rangeCWDM: 1271nm-1611nm
DWDM: C-Band (100GHZ/75GHZ/50GHZ)
Channel spaci ngCWDM: 20nm

DWDM: 0.8nm/0.6 nm /0.4nm
Channel insertion loss
(DWDM)		4CH:<1.5dB, 6CH:<2.0dB, 8CH:<3.2dB, 12CH:<3.8dB, 16CH:<4.2dB
40CH:<6.0dB,48CH:<6.0dB, 80CH:<6.5.0dB, 96CH:<7.5dB
Center wavelength accuracy±0.05 nm
Isolation of adjacent cha nnels>25dB
Non-adjacent channel isolation>30dB
Polarizati on dependent lossW0.5dB
Maximum in put power>300mw
Return loss>45dB
Polarization mode dispersi onWO.lOps
Slot1 slot (below 16 waves), 2 slots (40-48 waves), 4 slots (80-96 waves)
Network management functionCLI,WEB
Dimension (H*W*D)170*22*245 mm/45*170*245mm/89*170*245mm
SafetyFCC, UL, CE, TUV, CSA
MTBF> 100,000 hours


Technical Specifications

Items
Description
Wavelength range

  • CWDM: 1271nm-1611nm

  • DWDM: C-Band (100GHZ/75GHZ/50GHZ)

Channel spacing

  • CWDM: 20nm

  • DWDM: 0.8nm/0.6 nm /0.4nm

Channel insertion loss
(DWDM)

  • 4CH:<1.5dB, 6CH:<2.0dB, 8CH:<3.2dB, 12CH:<3.8dB, 16CH:<4.2dB

  • 40CH:<6.0dB,48CH:<6.0dB, 80CH:<6.5.0dB, 96CH:<7.5dB

Center wavelength accuracy

  • ±0.05 nm

Isolation of adjacent cha nnels

  • >25dB

Non-adjacent channel isolation

  • >30dB

Polarizati on dependent loss

  • W0.5dB

Maximum input power

  • >300mw

Return loss

  • >45dB

Polarization mode dispersion

  • WO.lOps

Slot

  • 1 slot (below 16 waves), 2 slots (40-48 waves), 4 slots (80-96 waves)

Network management function

  • CLI, WEB

Dimension (H*W*D)

  • 170*22*245 mm/45*170*245mm/89*170*245mm

Safety

  • FCC, UL, CE, TUV, CSA

MTBF

  • > 100,000 hours


Ordering Information

NO.Product ModelSpecificationsAccessories
1CDTrans-10003*FE RJ45 + 3*FE SFP + 4*Slots with 8*Channels + 2*Micro USB
2CDTrans-20003*FE RJ45 + 3*FE SFP + 8*Slots with 16*Channels + 2*Micro USB
3CDTrans-60003*FE RJ45 + 3*FE SFP + 20*Slots with 48/96*Channels + 2*Micro USB


Ordering Information

NO.

  • 1

  • 2

  • 3

Product Model

  • CDTrans-1000

  • CDTrans-2000

  • CDTrans-6000

Specifications

  • 3*FE RJ45 + 3*FE SFP + 4*Slots with 8*Channels + 2*Micro USB

  • 3*FE RJ45 + 3*FE SFP + 8*Slots with 16*Channels + 2*Micro USB

  • 3*FE RJ45 + 3*FE SFP + 20*Slots with 48/96*Channels + 2*Micro USB

Accessories

  • /
