Mechanics | |

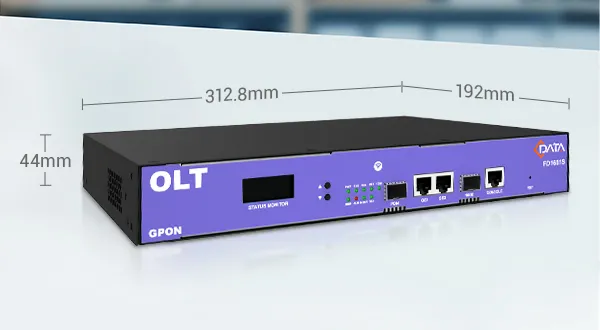

Dimensions | 290mm(L)*192mm(W)*40mm(H) |
Weight | 1.50Kg |
Hardware | |||

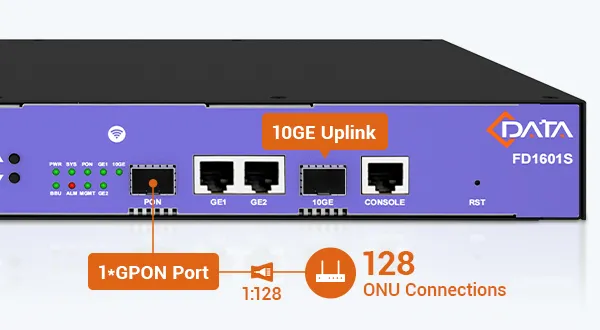

Uplink Port | 2 10/100/1000M auto-negotiation Ethernet ports | ||
10 Gigabit uplink port | |||
PON Port | Quantity | 1 | |
Physical interface | SFP slot | ||
Interface type | GPON: ITU-TG.984.2 Class B+/Class C+ | ||
Max splitting ratio | GPON: 1:128 | ||
Management Port | 1 CONSOLE local management port | ||
PON Port attribute | Transmission distance | 20KM | |
Port rate | GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps | ||
Wavelength | Forwarding: 1490nm Receiving: 1310nm | ||
Interface type | SC/UPC | ||
Fiber type | 9/125μm SMF (Single Mode Fiber) | ||
Light transmission power | Class B+ +1.5 ~ +5dBm | Class C+ +3 ~ +7dBm | |
Receiving sensitivity | Class B+ : -28dBm | Class C+ : -30dBm | |
Saturation power | Class B+ -8dBm | Class C+ -12dBm | |
Backplane Bandwidth | 27.75G | ||

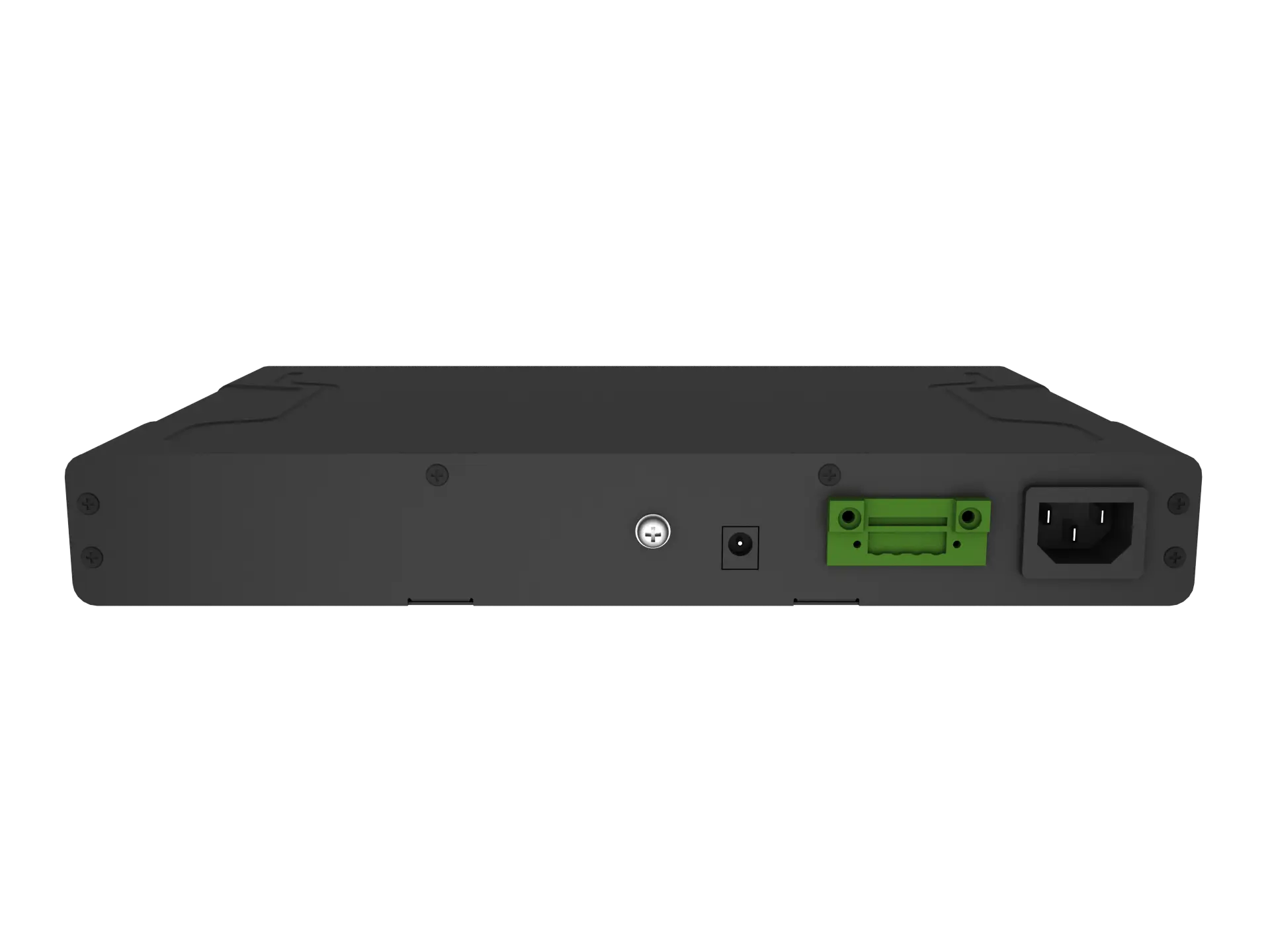

Power supply | |
AC | 100V ~ 240V，47~63Hz |
DC | External adapter mode 12V/2.5A |
Environment | |
Working temperature | -15 ~ 50℃ |
Storage temperature | -40 ~ 85℃ |
Ambient humidity | 5 ~ 90% (Non-condensing) |
NO. | Product Model | Specifications | Dimensions | Fan Module | Power supply |

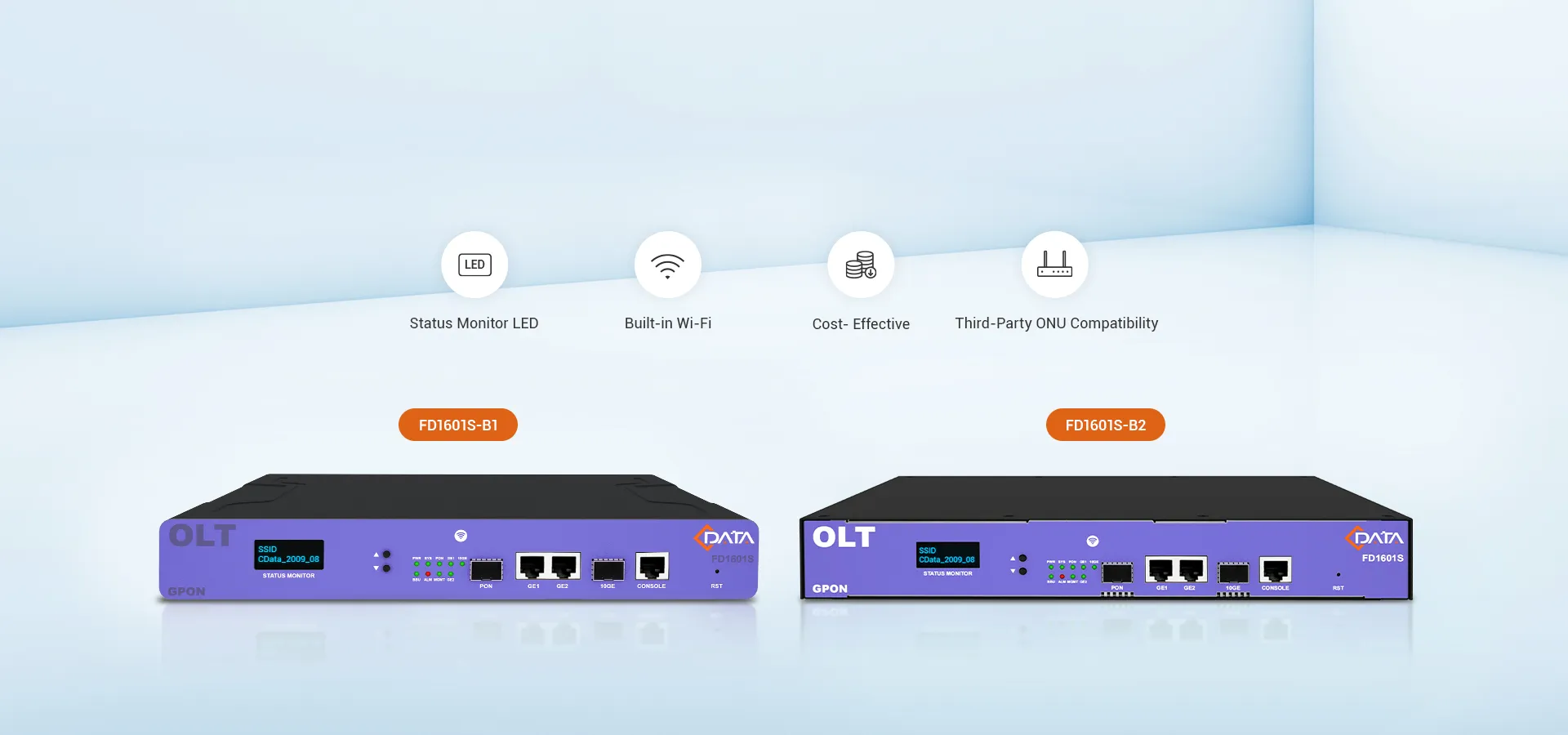

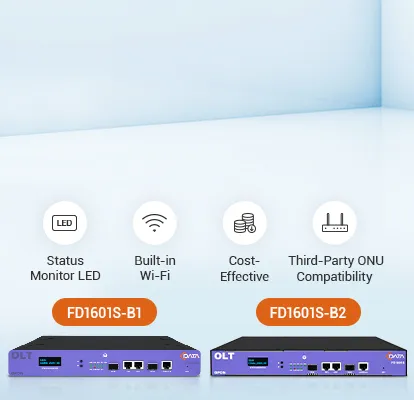

1 | FD1601S-B1 | 1*GPON + 2*GE RJ45 + 1*Optional XGPON or 10GE(SFP+) | 290mm(L)*193mm(W)*41mm(H) | N/A | 90V ~ 240V AC; External adapter mode 12V/2.5A; Optional BBU power supply |
2 | FD1601S-B2 | 1*GPON + 2*GE RJ45 + 1*Optional XGPON or 10GE(SFP+) | 312.8mm(L)*193mm(W)*44mm(H) | Smart Fan Module | |
3 | FD1602S-B1 | 2*GPON + 2*GE RJ45 + 1*Optional XGPON or 10GE(SFP+) | 360mm(L)*193mm(W)*44mm(H) | Smart Fan Module |
